Tools and Software
Open OnDemand (OOD)
Open OnDemand provides remote desktop sessions, jupyter notebooks, and Rstudio sessions.
You can find the Open OnDemand URL under your project space in the portal:
- For UniBael projects use portal in https://portal.scicore.unibas.ch
- For SPHN projects use portal in https://portal.dcc.sib.swiss
To access Open OnDemand you need to log in using your EduID account with 2-factor authentication.
If you are already logged in the portal you won’t need to login again.
Open OnDemand shell access

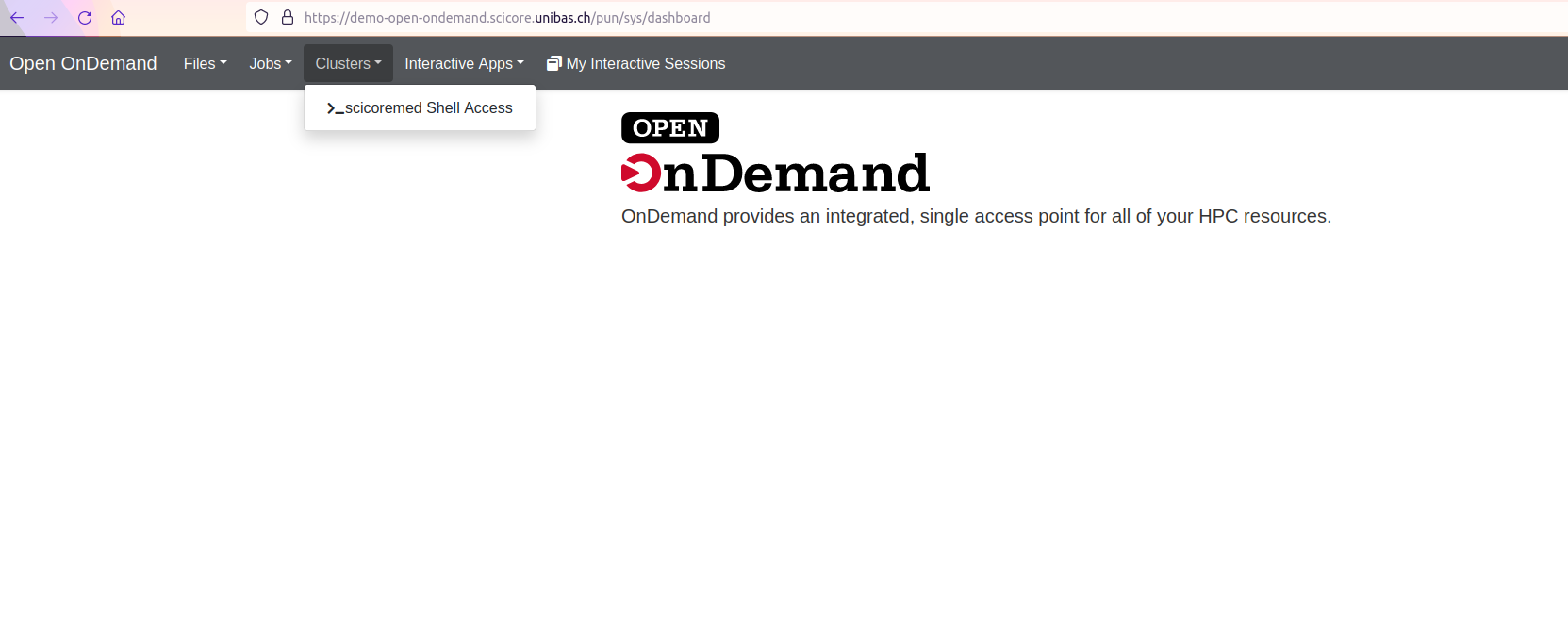

Access “Clusters >> scicore+ shell access” on the top menu to get a shell in the login node in your slurm cluster
Open OnDemand remote desktop access

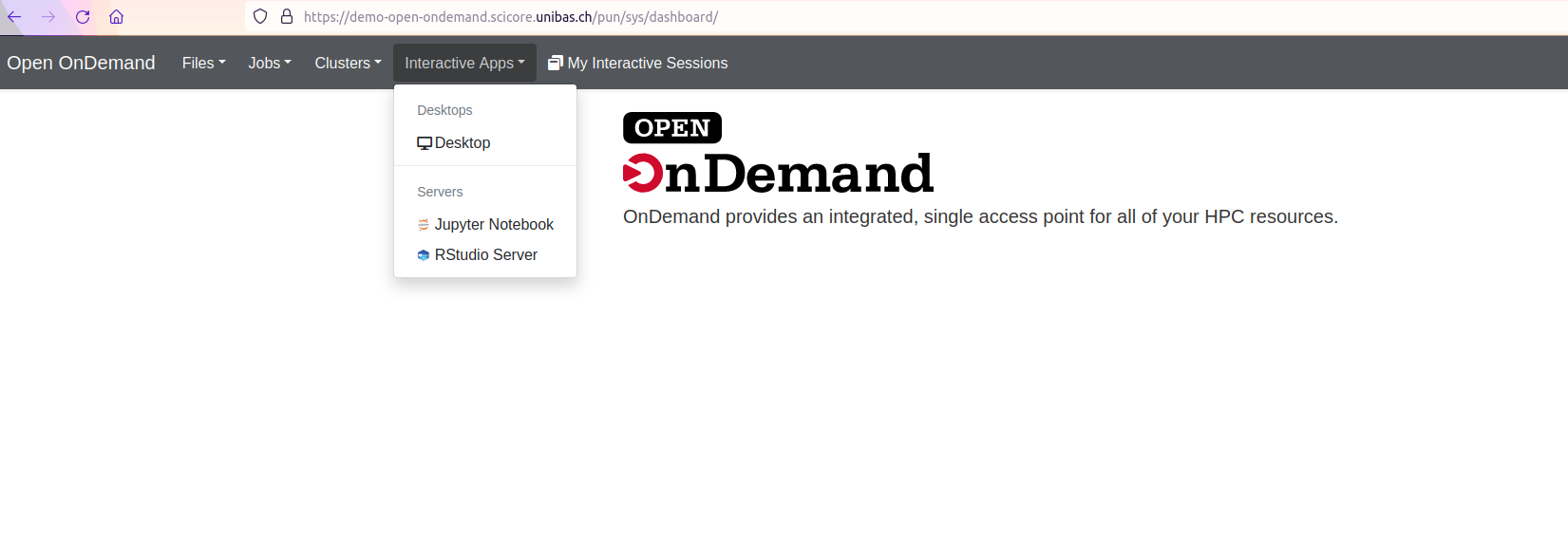

Access “Interactive Apps >> Desktop” in the top menu

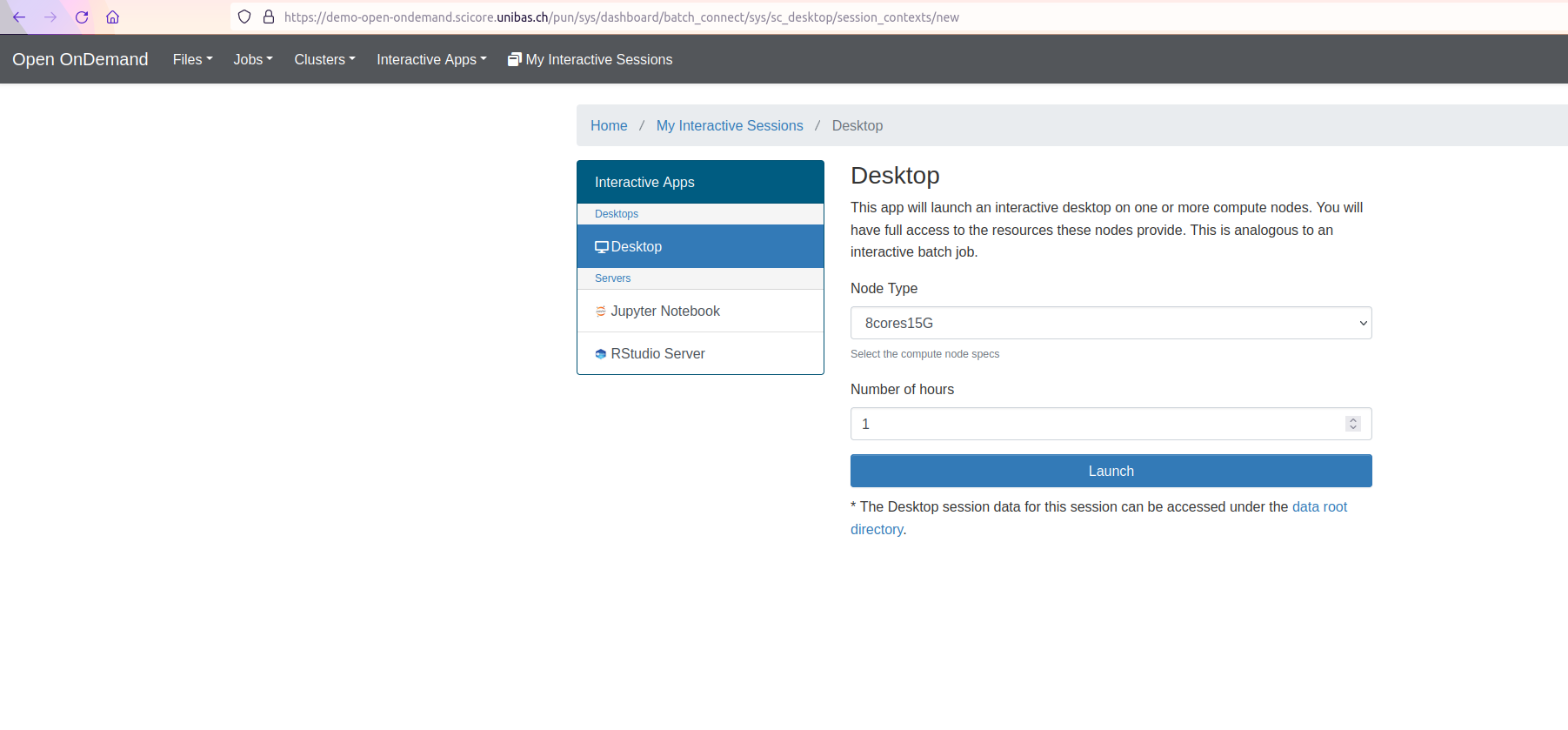

Select the node specs and hours and click “Launch”

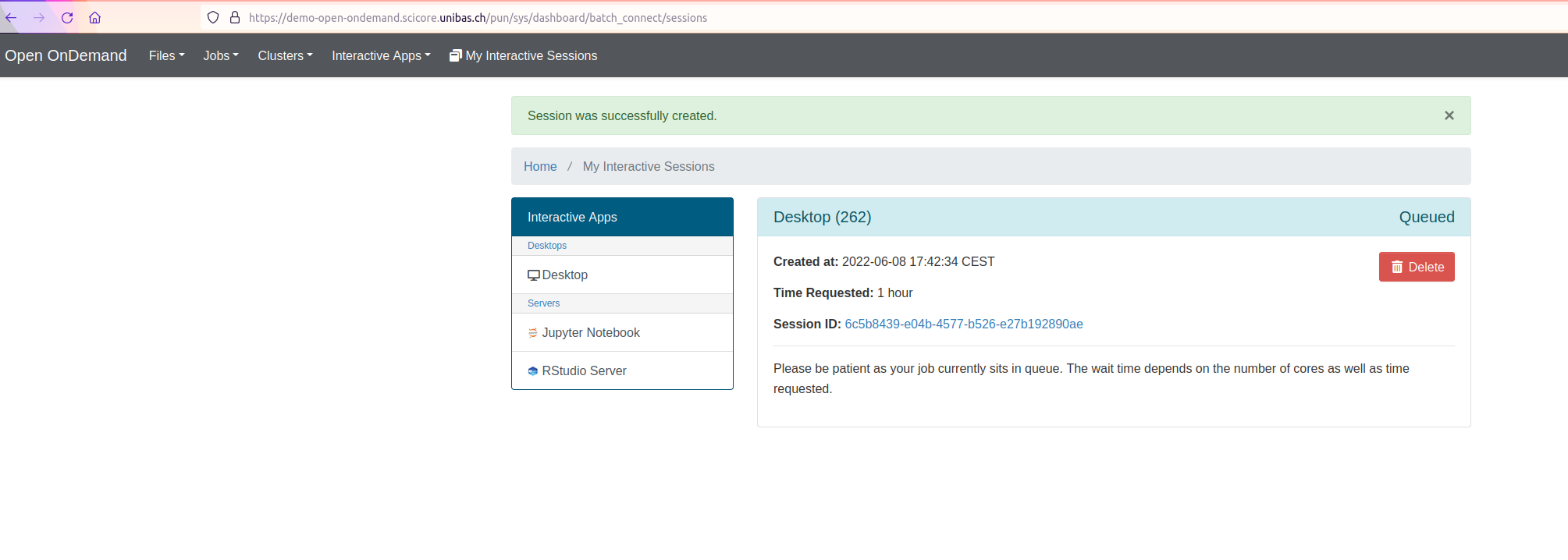

Once you click “Launch” your job will appear in the list of “My interactive sessions” in “queued” state (blue background)
Warning
Once you launch the job, it can be in queued state for ~1min until it’s ready to use. Please be patient

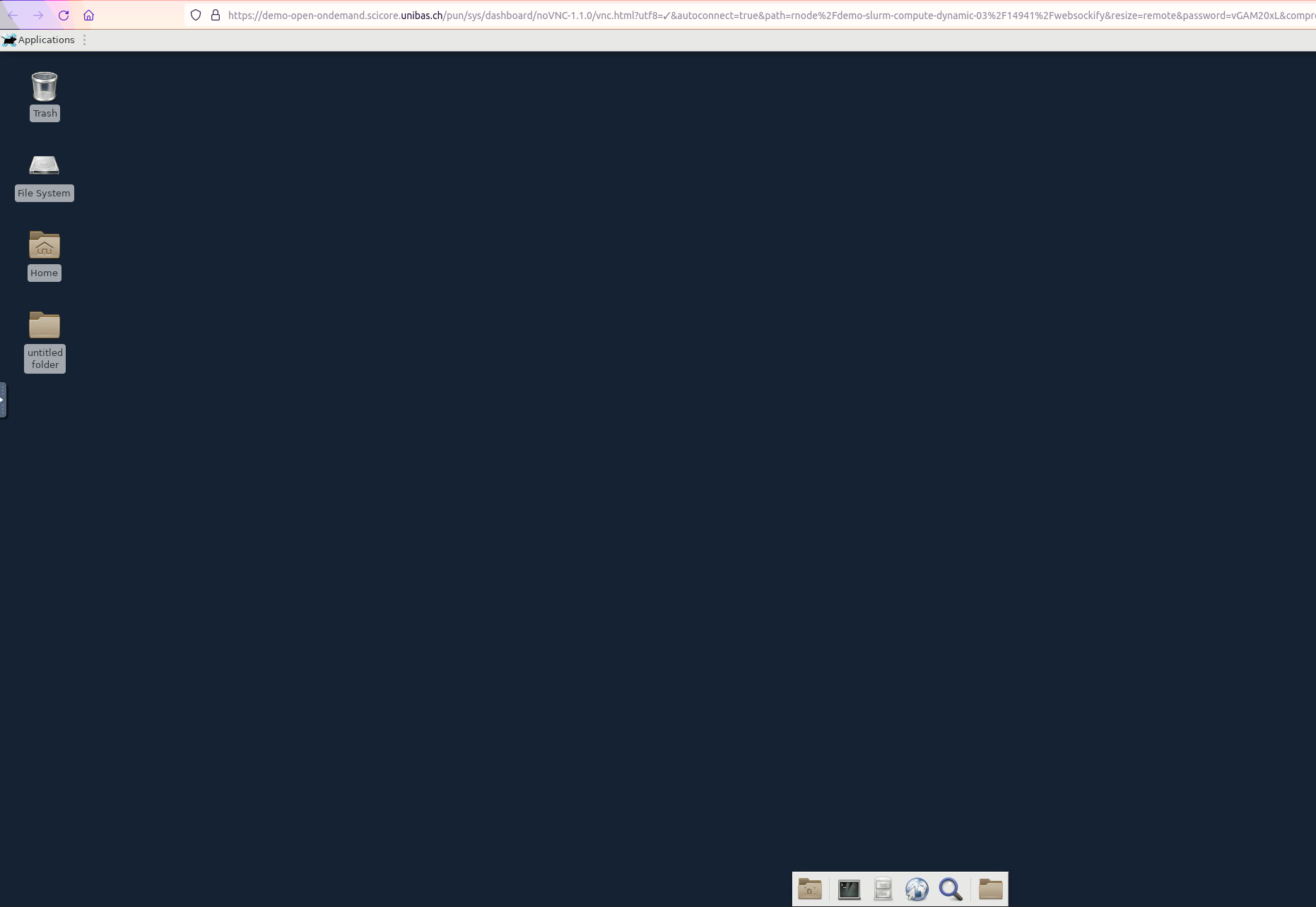

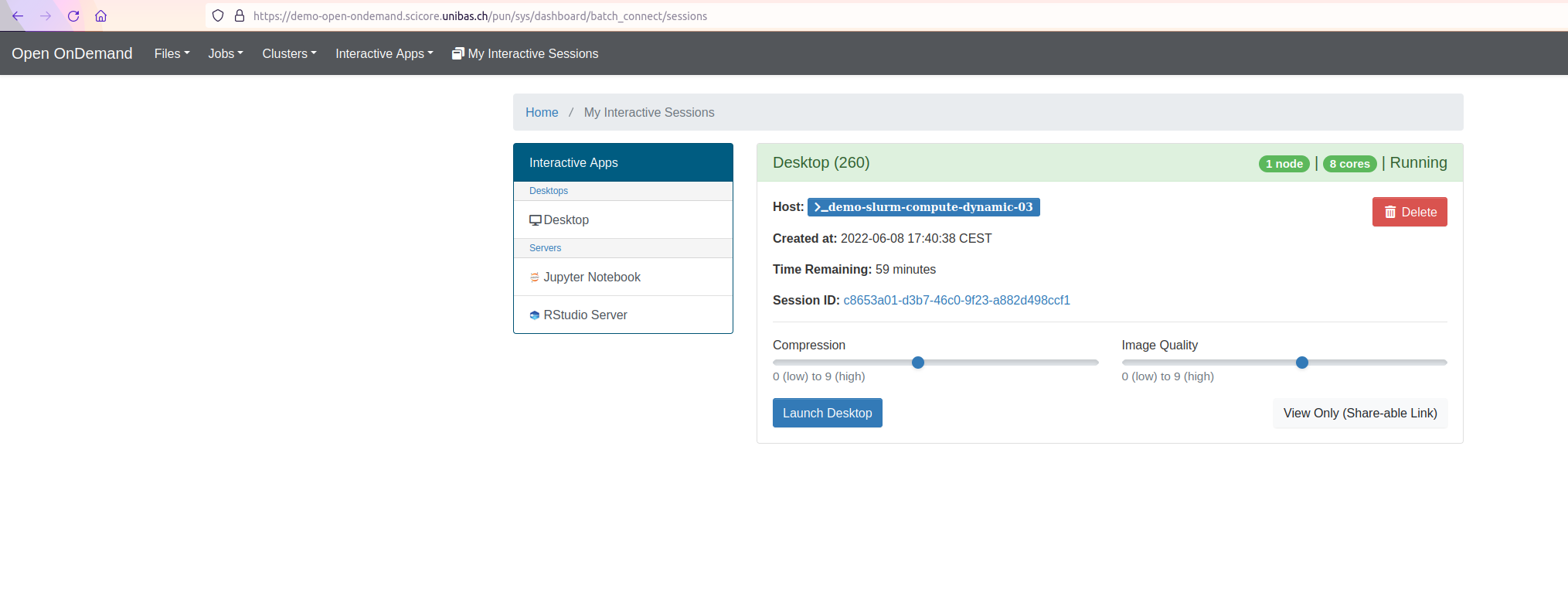

Once the job is in “Running” state (green background) you can click on “Launch Desktop” to access your desktop session
Open OnDemand RStudio

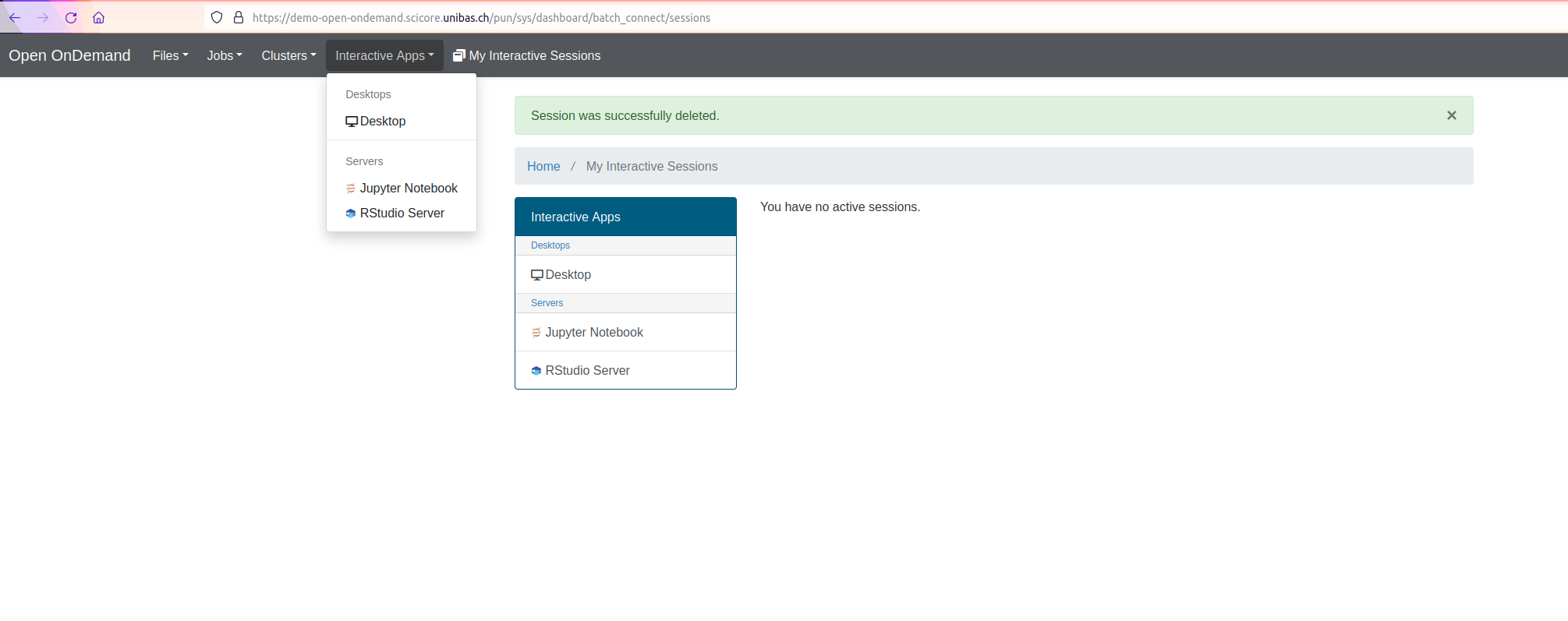

Access “Interactive Apps >> Rstudio” in the top menu

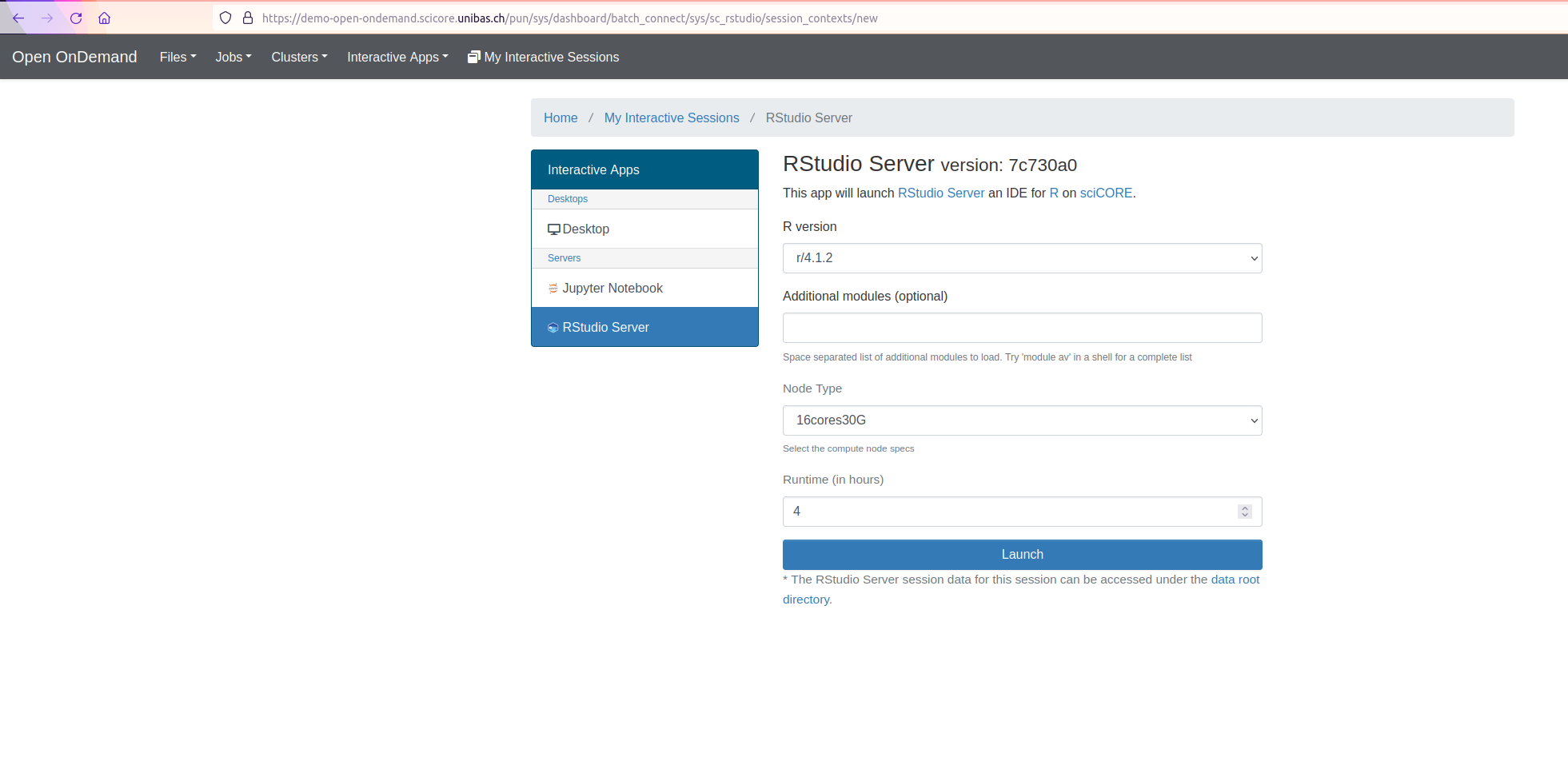

Select the R lang version, node specs and runtime hours and click “Launch”

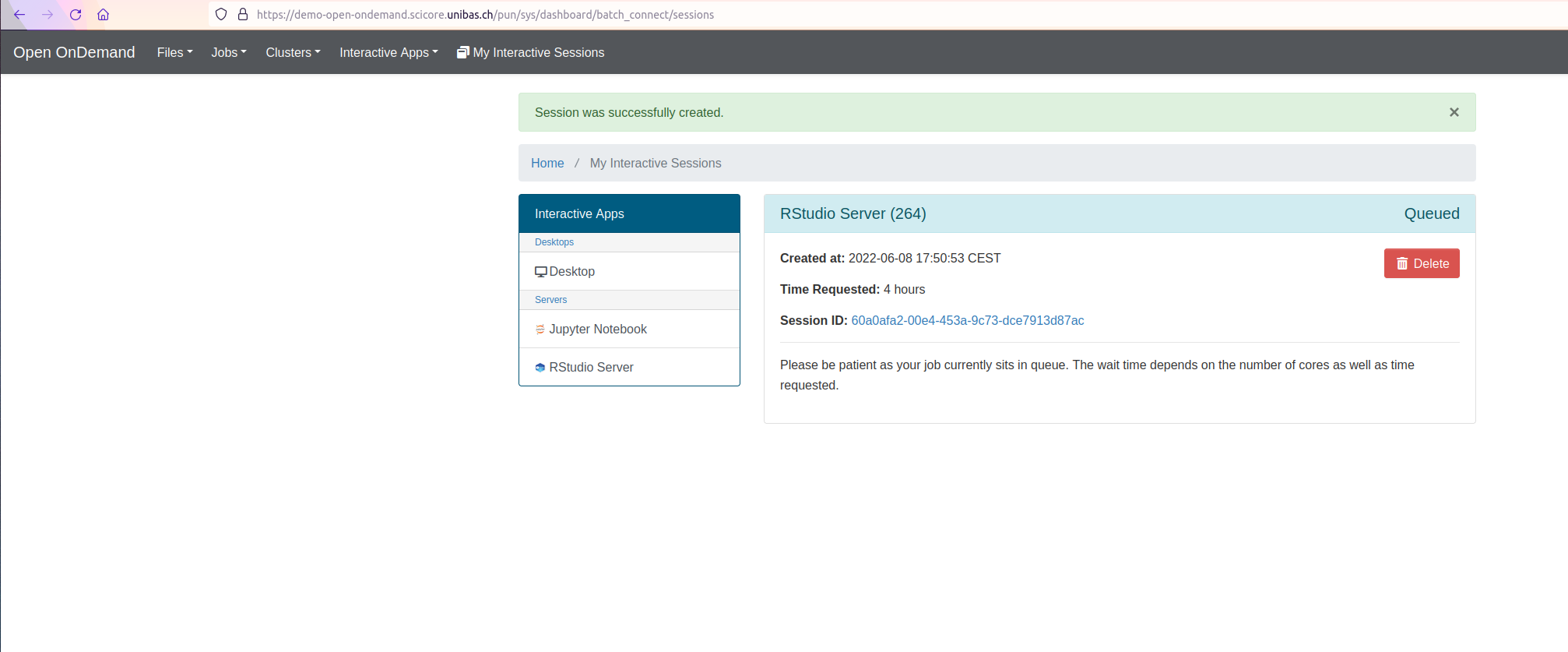

Once you click “Launch” your job will appear in the list of “My interactive sessions” in “queued” state (blue background)
Warning
Once you launch the job, it can be in queued state for ~1min until it’s ready to use. Please be patient

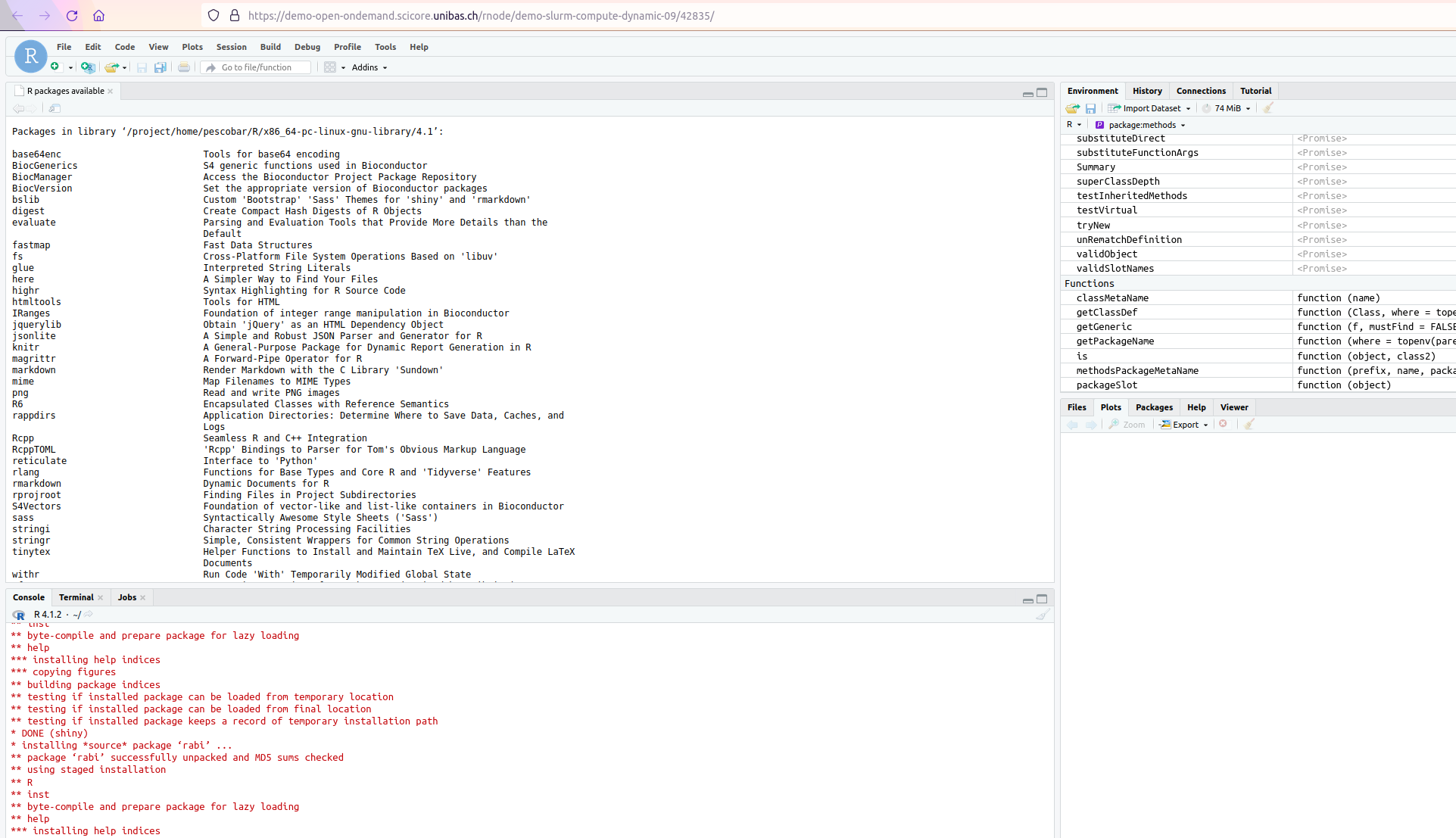

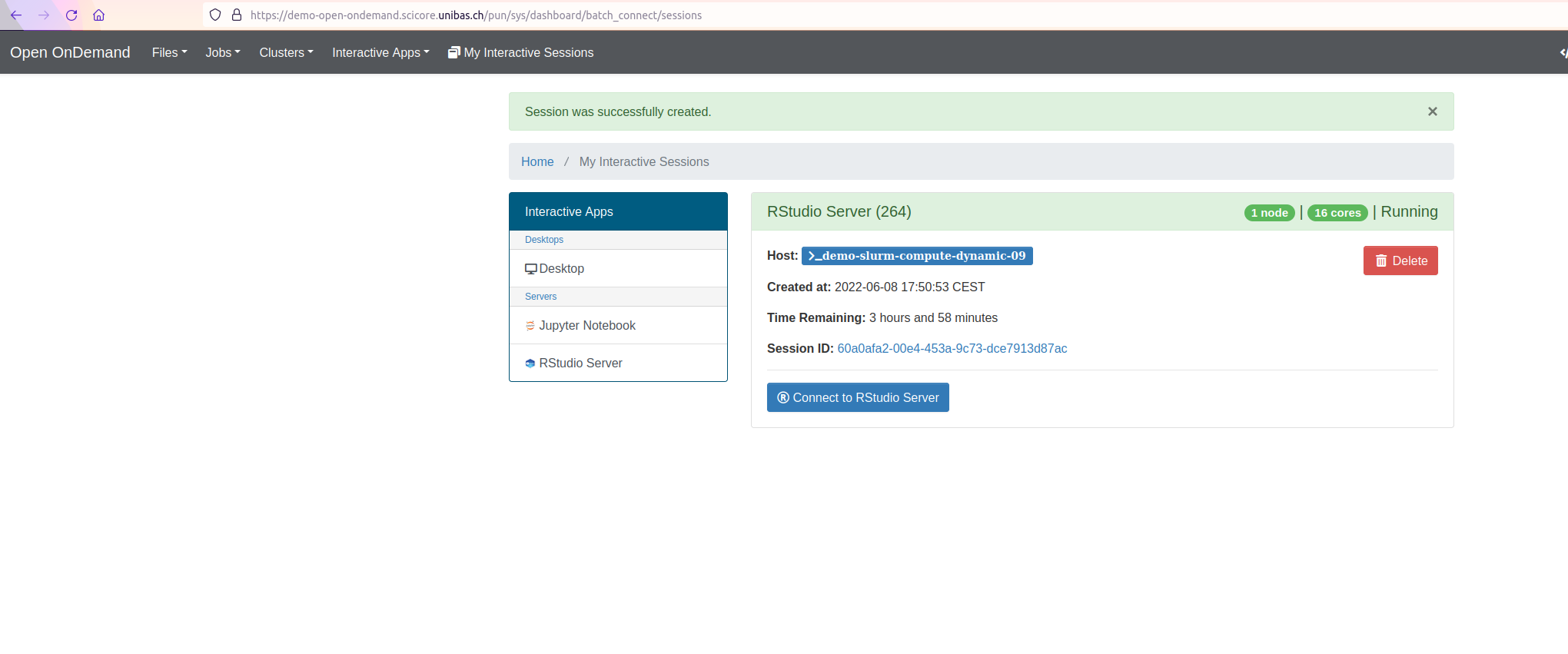

Once the job is in “Running” state (green background) you can click on “Connect to Rstudio Server” to access your Rstudio session
Batch Computing (SLURM)
SLURM is a queueing system (also known as Workload Manager) used to maintain a fair shared usage of the computational resources at sciCORE+. Users that want to run calculations in the cluster must interact with SLURM to reserve the resources required for the calculation.
You can use the SLURM cluster to:
- Submit batch jobs using the sbatch command
- Start an interactive shell in a CPU or GPU compute nodes using srun command
SLURM resources
You can check the available SLURM resources with commands sinfo e.g.
$ sinfo
PARTITION AVAIL TIMELIMIT NODES STATE NODELIST
dynamic-4cores-16g* up infinite 4 idle~ demo-slurm-compute-dynamic-[01-04]
dynamic-8cores-32g up infinite 4 idle~ demo-slurm-compute-dynamic-[05-08]
dynamic-16cores-64g up infinite 4 idle~ demo-slurm-compute-dynamic-[09-12]
dynamic-32cores-128g up infinite 2 idle~ demo-slurm-compute-dynamic-[13-14]
all-cpu-nodes up infinite 14 idle~ demo-slurm-compute-dynamic-[01-14]
dynamic-8cores-64g-1gpu-titanxp up infinite 2 idle~ demo-slurm-compute-dynamic-gpu-titanxp-[01-02]
dynamic-64cores-256g-1gpu-A100-40g up infinite 1 idle~ demo-slurm-compute-dynamic-gpu-a100-01
sciCORE provides the following SLURM Partitions:
dynamic-4cores-16g>> 4 nodes with 4 cores and 16G ram >> total 16 cores and 64Gdynamic-8cores-32g>> 4 nodes with 8 cores and 32G >> total 32 cores and 128G ramdynamic-16cores-64g>> 4 nodes with 16 cores and 64G >> total 64 cores and 256G ramdynamic-32cores-128g>> 4 nodes with 32 cores and 128G >> total 128 cores and 512G ramall-cpu-nodes>> includes all previous cpu partitionsdynamic-8cores-64g-1gpu-titanxp>> 2 nodes with 1xTitanXP GPU, 8 cores and 64G ramdynamic-64cores-256g-1gpu-A100-40g>> 1 node with 1xA100 GPU, 64 cores and 256G ram
Warning
It is important to specify the partition of your jobs. If you don’t specify it, your jobs will land in the default partition “dynamic-4cores-16g”.
Depending on the requirements of each job, you can submit your jobs to different partitions.
The SLURM configuration can be adjusted based on the project’s needs. Should the existing configurations do not fit your project’s need, please contact us at scicore-admin@unibas.ch.
Allocating the right resources for your SLURM batch jobs
When submitting your SLURM batch jobs, you should pay close attention to the resources you request.
Tip
To maximize efficiency and reduce job wait times, try to allocate all the resources available on a compute node (e.g., CPUs, memory) so that the scheduler can assign the entire node to your job without fragmenting resources.
However, the operating system requires a portion of RAM to function properly. In this case you should not request 100% of the node’s memory. Doing so may cause the job to be terminated or fail due to memory exhaustion.
Examples
- If you submit jobs requesting 4 cpus and 10GB ram to partition
dynamic-4cores-16gyou can only allocate 1 job per node. In this case you would have 4GB ram unused by node. - If you submit jobs requesting 10 cpus and 20GB ram to partition
dynamic-16cores-64gyou can only allocate 1 job per node. Each node will have 6 cores and 40G ram unused. - If you submit jobs requesting 4 cpus and 14GB ram to partition
dynamic-16cores-64gyou can allocate 4 jobs per node. All the cpus and ram in every node would be in use.
To optimize resource usage for your pipeline, you should adapt the requested resources per job based on your specific needs. You may need to experiment a bit before finalizing your configuration.
A helpful strategy is to submit test jobs that simply run “sleep 900”. This allows you to determine how many jobs can be allocated per node with various resource reservations. Once you’re done testing, you can cancel these jobs using “scancel”. Additionally, you may consider submitting jobs to different partitions, if that suits your workflow.
SLURM batch jobs
This is an example with sbatch submission script:
#!/bin/bash
#SBATCH --job-name=test_JOB
#SBATCH --partition=dynamic-8cores-32g
#SBATCH --cpus-per-task=4
#SBATCH --mem=14G
#SBATCH --time=08:00:00
# activate the software stack (modules)
source /etc/profile.d/soft_stacks.sh
# enable EESSI or ComputeCanada soft stack (uncomment only one)
enable-software-stack-eessi
# enable-software-stack-compute-canada
# load your required software modules
module load SAMtools/1.18-GCC-12.3.0
samtools XXX YYY ZZZZ
SLURM interactive shell
If you need to work in an interactive shell in a compute node you can use the srun command
